Case study · Team project

Space Bar Simulator

Jan 2026 · Unreal Engine 5 · Blueprints · Team of 10

A retro futurist bar simulator set on its own asteroid: a 1950s diner drifting through space, where you serve alien customers against the clock. Built by a team of ten for Beta Arcade, Teesside's studio simulation module. I was a gameplay programmer on the team, and this page covers the systems I owned: the player controller, the interaction architecture and the interactive stations.

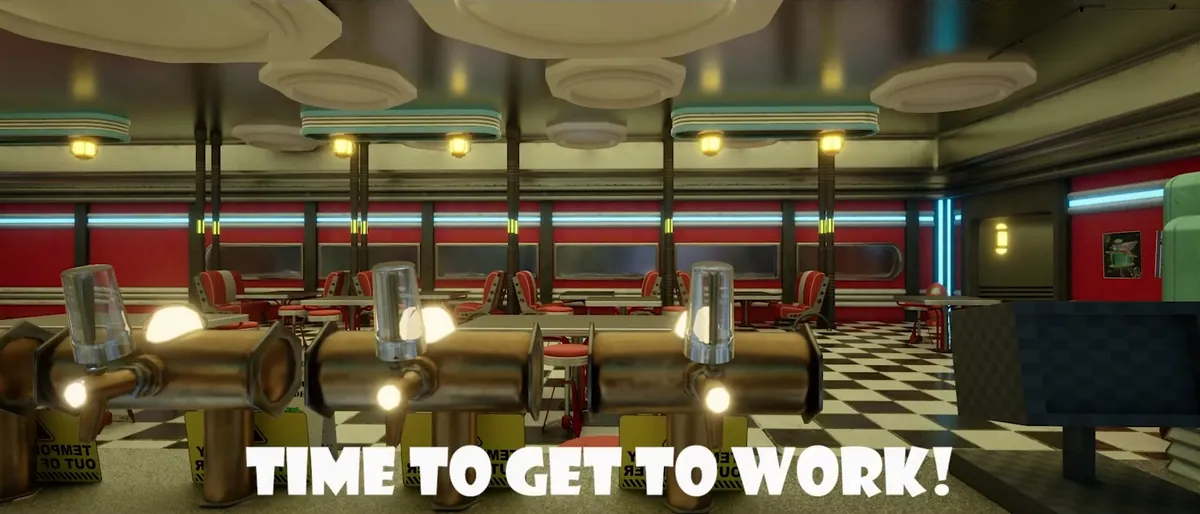

Space Bar Simulator: behind the bar, three beer taps in the foreground of a retro futurist diner with checkerboard floors, red booths and neon strips

RoleGameplay programmer
EngineUnreal Engine 5
Team10 people
ModuleBeta Arcade, final year

Overview

Serving aliens against the clock

Space Bar Simulator is a first-person bar sim: customers sit down, orders come in, and you pour drinks, load trays and keep the diner running while the day timer counts down. It was built across a full semester by a ten-person team of designers, artists and developers, working in Unreal Engine 5 with Git feature branches and a shared project tracker.

I worked on the gameplay core: the player controller and character movement, the interaction system every prop plugs into, the camera-blended stations like the beer taps, and the UI computer terminal used for upgrades.

Space Bar Simulator gameplay: carrying a tray in first person while collecting Space Beer bottles from a fridge, with table orders and the day timer on the HUD — Working an order: tray in hand, table requests on the left, the day clock ticking.

Input

Player controller on Enhanced Input

The controller is built on UE5's Enhanced Input System. On BeginPlay it applies the mapping context that switches the bindings on, then routes every action (move, look, interact, drop) through to the character class.

The split between the two blueprints is deliberate separation of concerns: the controller only captures and routes input, while the character owns the actual movement logic, converting inputs into world-space movement along its own forward and right vectors so movement always follows where the player is facing.

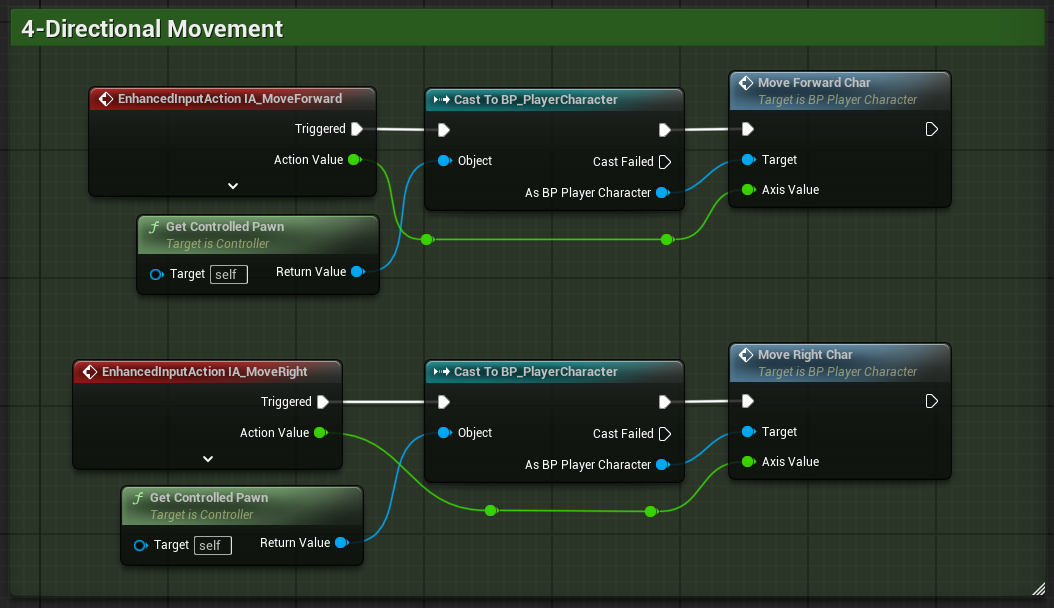

Unreal Engine blueprint graph: Enhanced Input actions for MoveForward and MoveRight cast to the player character and call its movement functions — Input actions route through the controller and cast to the character's movement functions.

Interaction

One interface for every interactable

Interaction lives in a dedicated actor component on the character, so the system bolts on without rewriting the player. When the interact key is pressed, a line trace fires from the first-person camera along the look direction, so the interaction lands exactly where the player is aiming.

Early on, the player cast to each object type it wanted to interact with. That kind of tight coupling was already making the graphs messy, and in a ten person project it would have meant constant merge conflicts. I replaced it with BPI_Interactable, a Blueprint interface with a single Interact() function. The trace just checks whether the hit actor implements the interface, and the object handles the rest itself.

This meant the rest of the team could add interactable props like beer taps, computers and trays without ever touching the player character. Once the system was in, I also taught the team how to use it so everyone could build against it.

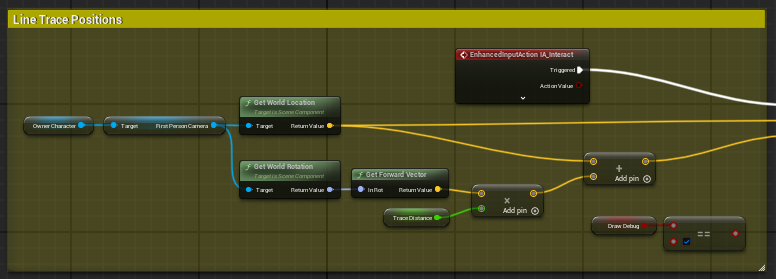

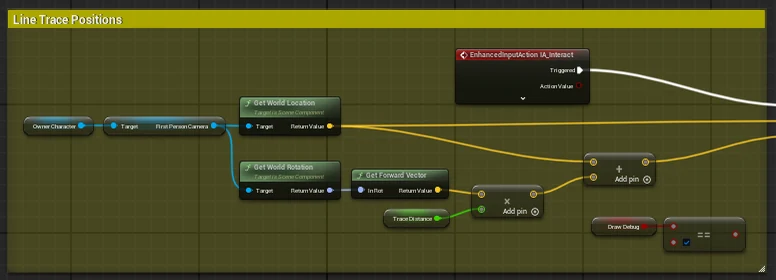

Unreal Engine blueprint graph: calculating line trace start and end positions from the first-person camera's world location, rotation and forward vector — The trace runs from the camera along the aim direction.

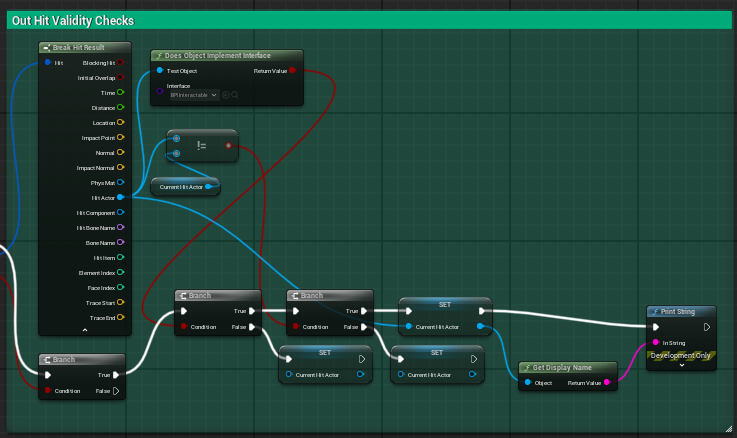

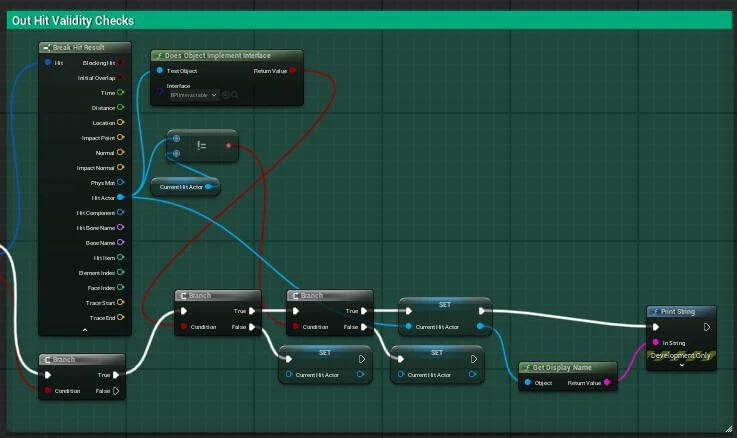

Unreal Engine blueprint graph: validating the line trace hit actor by checking it implements the BPI_Interactable interface before processing — Hit validation: the only question asked is whether the actor implements BPI_Interactable.

Stations

Stations that borrow the camera

Some interactables, like the beer taps and the computer, zoom the player in for a closer interaction. The station system handles that context switch: it caches the player's current view as the return target, locks movement and look input, then uses Set View Target with Blend to interpolate the camera smoothly onto the station's fixed camera and shows the mouse cursor for UI interaction.

Exiting reverses the process: the camera blends back to the stored view target, the cursor is hidden, and input is only restored once the blend has begun. Early versions let players walk around while the camera was fixed on a beer tap, and debugging that taught me how much good gameplay code comes down to strict state management.

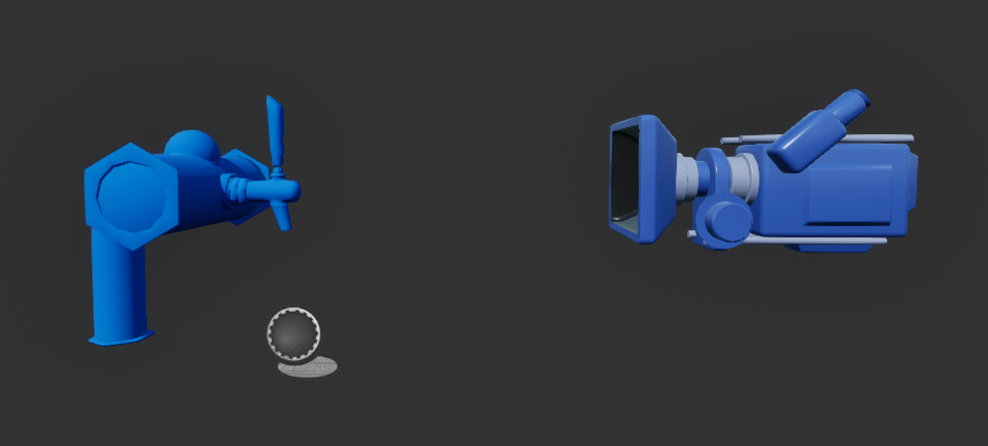

Unreal Engine viewport: the blue blockout beer tap actor with the fixed station camera positioned to frame it during interaction — A station actor: the beer tap with its fixed interaction camera.

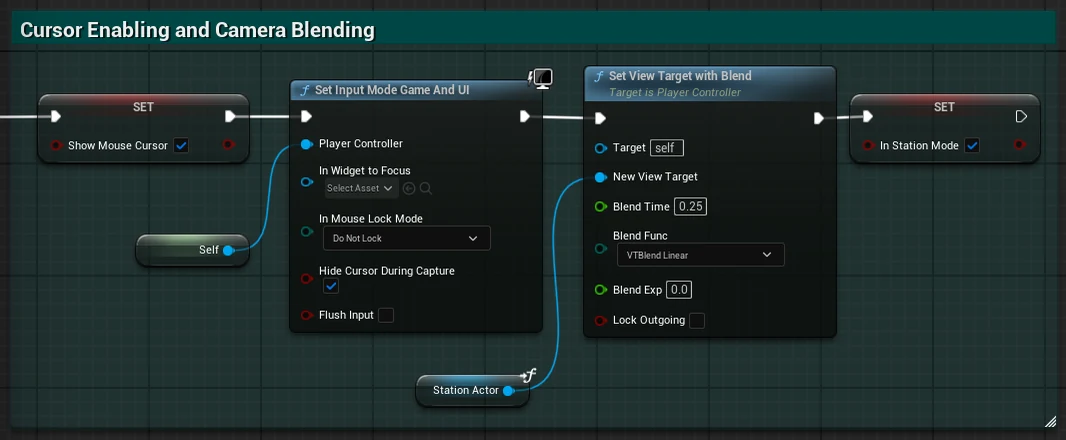

Unreal Engine blueprint graph: showing the mouse cursor, setting input mode to game and UI, and calling Set View Target with Blend toward the station actor — Entering a station: cursor on, input mode swapped, camera blended to the station.

The computer terminal

The in-game computer is a station with a full menu system on it, used to buy upgrades between shifts. Rather than creating widgets every time the screen opens, the menus, sub-menus and HUD references are all created once on BeginPlay and cached, then shown and hidden with visibility toggles. Opening the computer is just a visibility swap, so nothing gets recreated or leaked.

Navigation works the same way: "Go For Upgrades" hides the main menu container and reveals the upgrades menu, and the back button calls straight into the station system's exit flow, blending the camera back to first person and restoring the gameplay HUD.

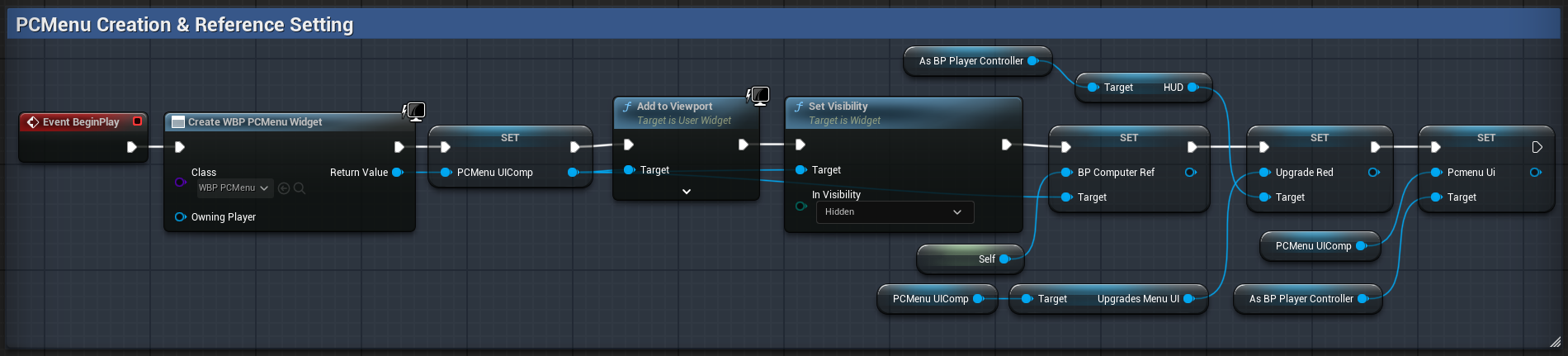

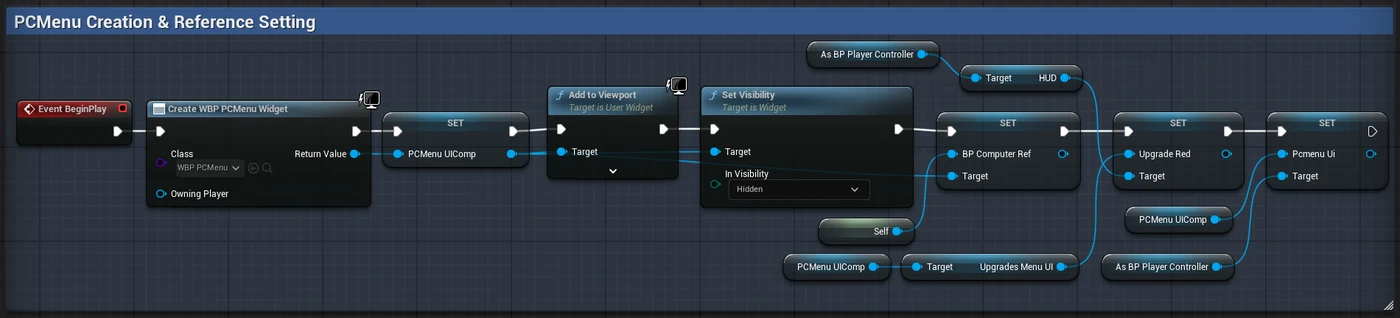

Unreal Engine blueprint graph: creating the PC menu widget on BeginPlay, adding it to the viewport hidden, and caching references to the HUD and upgrade menus — Widgets built once on BeginPlay, hidden by default, references cached.

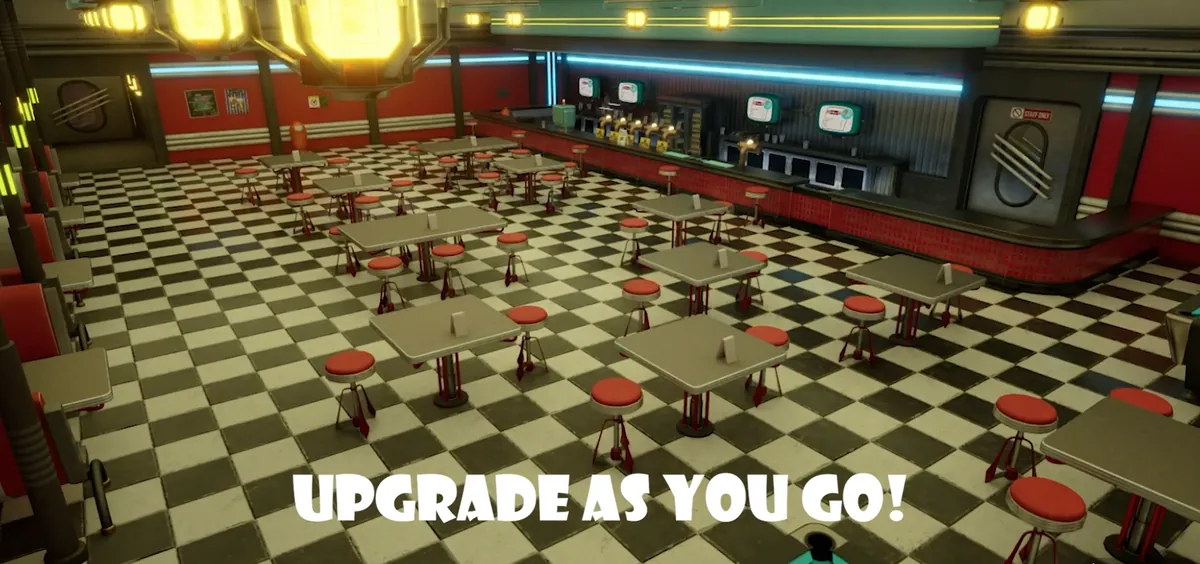

Space Bar Simulator: wide view of the diner with checkerboard floor and rows of tables, with the caption Upgrade as you go — Upgrades bought at the terminal feed back into the diner itself.

Teamwork

Working in a team of ten

This was the closest thing to studio development I had at university: tasks tracked per discipline, near-weekly team meetings, and Git feature branches that kept merge conflicts rare. My role was closest to a technical designer's. I built gameplay systems, then taught them back to the team so designers and artists could work with them independently.

Component-based interaction that any prop adopts by implementing one interface.
Camera and input state management across first-person and station contexts.
Widget caching and visibility-state UI for the upgrade terminal.
Designed and built each system, then demonstrated it to the team.
